Application of Robotics Technology - Reed Relay Series
Keyword:
Classification:
Details
It is particularly important that the reed relay can switch analog signals at microvolt or microamp signal levels. The low static contact resistance provides an ideal solution, and the signal strength does not weaken over time. Additionally, when using high-frequency circuits, the reed relay can provide extremely low insertion loss and excellent insulation over 1GHz.

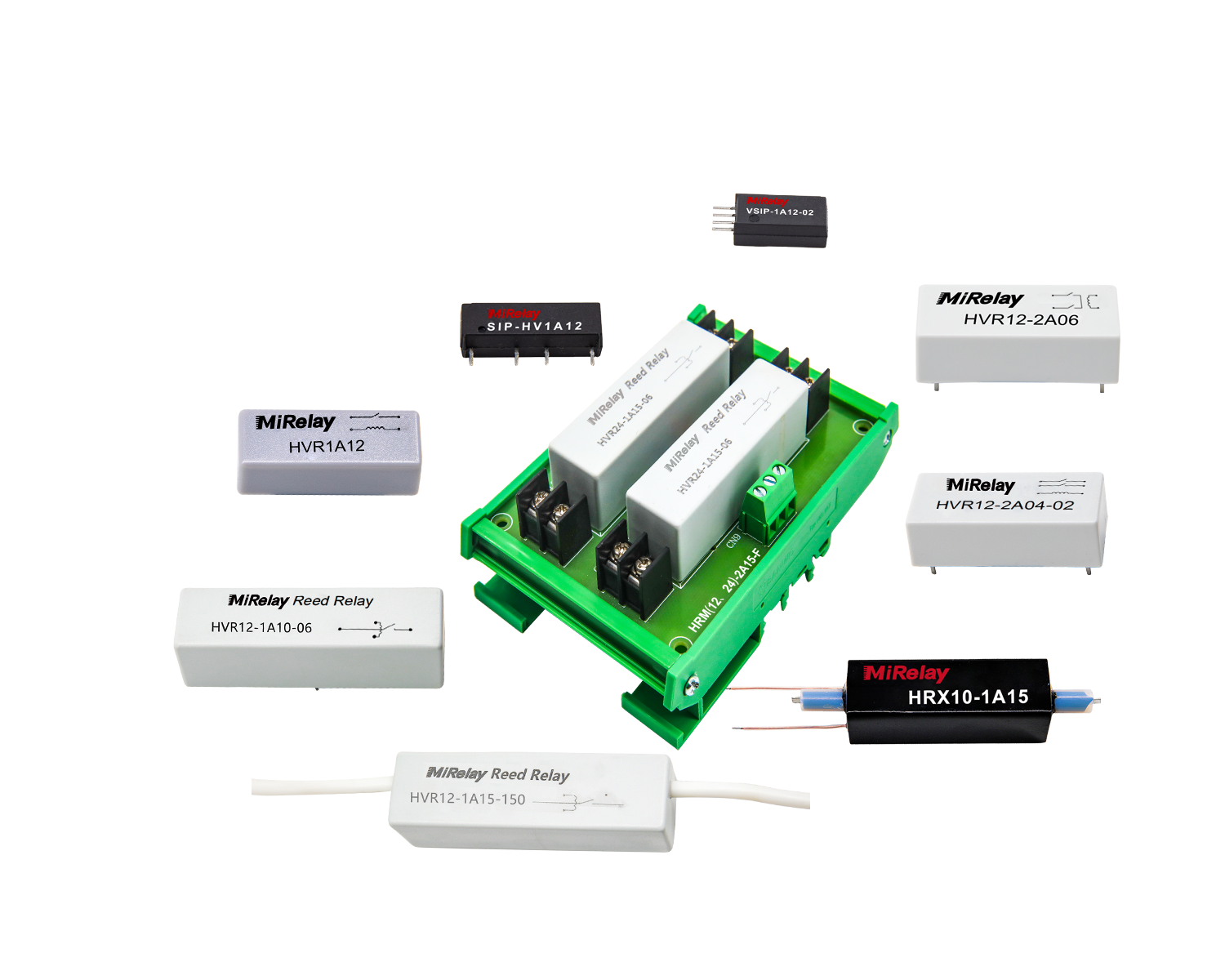

In terms of industrial applications, the DIL, PB, MSIP, SIP, HVMR, and HVFR series are the best choices.
Technical parameters (typical values):
● Contact resistance: <150 mΩ
● Insulation resistance
▪ Contact/Contact: >10^9 Ω
▪ Contact/Coil: >10^10 Ω
● Switching time
▪ Pull-in time (including bounce): <0.5ms
▪ Release time: <0.5ms
● Lifespan (10VDC 10mA): >10^7 cycles
For more product details, please click: https://www.mirelay.com/product/7/
